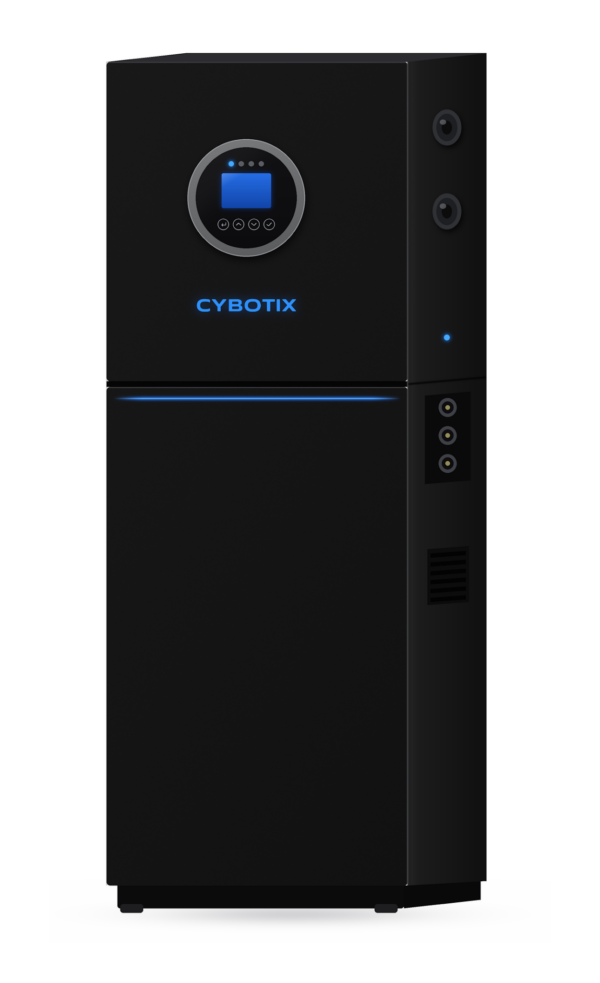

The Cybotix 32kWh solar battery system is a large-capacity, all-in-one energy storage solution for businesses, institutions, and high-demand homes. It integrates a 12kW inverter, dual MPPT solar inputs, and 32kWh of built-in battery storage on a 48V platform, delivering serious power and long backup from one cabinet.
32kWh of Storage for Round-the-Clock Power
This system stores a large share of your daytime solar production and supplies it through the evening and overnight. It keeps air conditioners, refrigeration, pumps, lighting, computers, and equipment running during long grid outages, and helps cut dependence on diesel generators.
12kW Output for Heavy Loads
Delivering 12kW at 220-240V AC, 50/60Hz, the system can run multiple high-demand appliances at once. That makes it suitable for large homes, commercial premises, and light industrial use. For motor-driven equipment, check the startup power so the combined load stays within 12kW.
Dual MPPT Solar Inputs
Two independent MPPT trackers, each with a 90-485V range, let you connect two separate panel strings, for example on east- and west-facing roofs or areas with different shading. Each string is optimised on its own, so this dual MPPT solar system harvests more energy throughout the day.
48V Battery Platform
With a battery operating range of 44.8-58.4V DC, this 48V energy storage system keeps current low at high power. That improves efficiency, reduces heat, and supports reliable daily solar cycling.
Installation Note
The cabinet measures 595 × 298 × 1550 mm and weighs 255 kg. Move it with a pallet jack, forklift, or other suitable lifting equipment, and have a qualified electrician connect it to your solar panels and electrical system.
Ideal For
- Commercial buildings, offices, and retail stores
- Hospitals, clinics, schools, and institutions
- Restaurants, workshops, and small factories
- Large homes with multiple air conditioners
- Sites replacing or reducing diesel generator use
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cybotix |
| Output Power | 12kW |
| Battery Rated Energy | 32kWh |
| Battery Operating Voltage | 44.8-58.4V DC (48V system) |
| MPPT Inputs | 2 |
| MPPT Voltage Range | 90-485V (per input) |
| AC Output Voltage | 220-240V, 50/60Hz |
| Dimensions | 595 × 298 × 1550 mm |
| Weight | 255 kg |
Frequently Asked Questions
How long will a 32kWh battery last?
It depends on your load. As a rough guide, 32kWh can run a 2000W load for about 16 hours, or a 4000W load for around 8 hours. Inverter losses and usable capacity will reduce these figures slightly.
What is the difference between the Cybotix 12kW 16kWh and 12kW 32kWh systems?
Both have a 12kW inverter, dual MPPT inputs, and a 48V platform. The 32kWh model stores twice the energy, so it gives you double the backup time for heavy loads.
Who should choose a 32kWh all-in-one system?
It suits businesses, institutions, and large homes with high nightly energy use, or properties that want to run mostly on solar and cut back on generator use.
How should I connect solar panels to this system?
Connect your panels in two series strings, one per MPPT input, keeping each string’s voltage within 90-485V. Panel voltage rises in cold weather, so leave a safety margin below 485V. A qualified installer can design the best layout.
