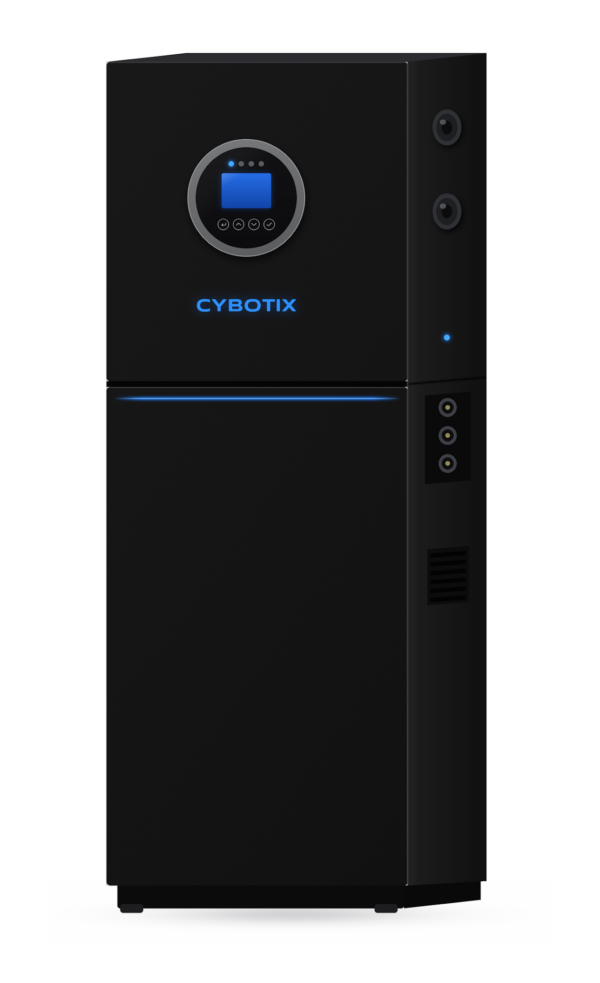

The Cybotix 6kW inverter with 16kWh battery is an integrated solar energy storage system for homes and businesses that want maximum backup time. It combines a 6kW inverter, an MPPT charge controller, and 16kWh of built-in storage on a 48V battery platform, so you can run your property on solar power well into the night.
16kWh of Storage for Extended Backup
This 16kWh all-in-one solar system stores a large share of your daytime solar production for use after dark. It keeps air conditioners, refrigerators, lighting, fans, TVs, computers, and water pumps running through long evenings, overnight, and during extended grid outages.
6kW Output for Heavy Household Loads
Delivering 6kW at 208-240V AC, 50/60Hz, the system runs multiple appliances at once, including high-demand loads like air conditioners and washing machines. For motor-driven appliances, check the startup power so the combined load stays within 6kW.
Efficient 48V Battery Platform
With a battery operating range of 40.5-54.5V DC, this 48V energy storage system keeps current low at high power levels. That improves efficiency, reduces heat, and supports reliable daily solar cycling.
High-Voltage 80-520V MPPT Charging
The integrated MPPT controller tracks your solar array’s maximum power point as sunlight changes, so your panels deliver as much energy as possible. The 80-520V input range supports long strings of high-wattage panels, reducing cable runs and losses.
Installation Note
The unit measures 430 × 481 × 736 mm and weighs 136 kg. Transport and position it with suitable lifting equipment and a team of installers, and have a qualified electrician connect it to your solar panels and electrical system.
Ideal For
- Homes that want all-night solar power
- Extended backup during load shedding and long grid outages
- Offices, clinics, shops, and restaurants with evening operations
- Properties that want to reduce generator use
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cybotix |
| Output Power | 6kW |
| Battery Rated Energy | 16kWh |
| Battery Operating Voltage | 40.5-54.5V DC (48V system) |
| MPPT Voltage Range | 80-520V |
| AC Output Voltage | 208-240V, 50/60Hz |
| Dimensions | 430 × 481 × 736 mm |
| Weight | 136 kg |
Frequently Asked Questions
How long will a 16kWh battery power my home?
It depends on your load. As a rough guide, 16kWh can run a 1000W load for about 16 hours, or a 2000W load for around 8 hours. Inverter losses and usable capacity will reduce these figures slightly.
What is the difference between the Cybotix 6kW 10kWh and 6kW 16kWh systems?
Both have a 6kW inverter, a 48V battery platform, and an 80-520V MPPT input. The 16kWh model stores 60% more energy, so it gives you significantly longer backup time.
Can this system run an air conditioner all night?
In many cases, yes. Runtime depends on the AC’s power draw and your other loads. A typical inverter AC drawing around 1000W could run for many hours on a full 16kWh battery.
How should I connect solar panels to this system?
Wire your panels in series so the string voltage stays within the 80-520V MPPT range. Panel voltage rises in cold weather, so keep a safety margin below 520V. A qualified installer can design the right string layout.
