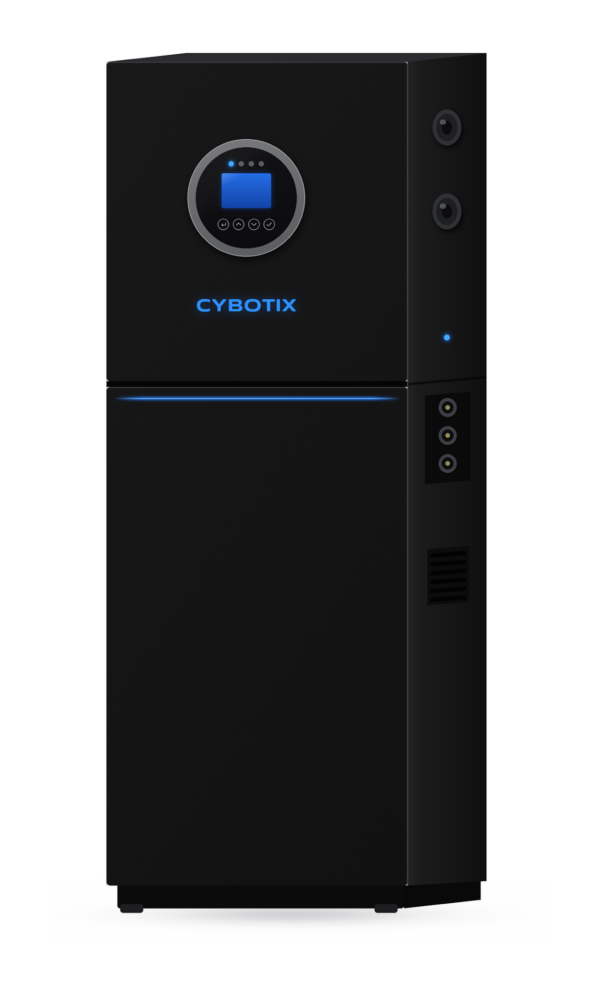

The Cybotix 12kW all-in-one solar inverter is a high-power, integrated energy storage system for large homes, commercial premises, and businesses with heavy energy demand. It combines a 12kW inverter, dual MPPT solar inputs, and a 16kWh built-in battery on a 48V platform, giving you strong output and long backup from a single cabinet.
12kW Output for Demanding Loads
Delivering 12kW at 220-240V AC, 50/60Hz, the system can run multiple air conditioners, refrigeration, water pumps, washing machines, lighting, and office equipment at the same time. For motor-driven appliances, check the startup power so the combined load stays within 12kW.
Dual MPPT for Flexible Solar Design
This dual MPPT energy storage system has two independent solar inputs, each with a 90-485V range. You can connect two panel strings facing different directions, such as east and west roofs, or arrays with different shading. Each string is optimised on its own, so you harvest more energy across the whole day.
16kWh of Built-In Storage
The integrated 16kWh battery stores surplus solar energy and keeps your property running after sunset and during long power outages. It helps you make the most of your solar production and reduces reliance on the grid and diesel generators.
Efficient 48V Battery Platform
With a battery operating range of 44.8-58.4V DC, this 48V all-in-one solar system keeps current low at high power. That improves efficiency, reduces heat, and supports dependable daily solar cycling.
Installation Note
The cabinet measures 550 × 245 × 1230 mm and weighs 146 kg. Transport and position it with suitable lifting equipment and a team of installers, and have a qualified electrician connect it to your solar panels and electrical system.
Ideal For
- Large homes running multiple air conditioners
- Commercial buildings, offices, clinics, and retail stores
- Restaurants, workshops, and small factories
- Long backup during load shedding and grid failures
- Sites looking to reduce diesel generator use
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cybotix |
| Output Power | 12kW |
| Battery Rated Energy | 16kWh |
| Battery Operating Voltage | 44.8-58.4V DC (48V system) |
| MPPT Inputs | 2 |
| MPPT Voltage Range | 90-485V (per input) |
| AC Output Voltage | 220-240V, 50/60Hz |
| Dimensions | 550 × 245 × 1230 mm |
| Weight | 146 kg |
Frequently Asked Questions
How long will the 16kWh battery last?
It depends on your load. As a rough guide, 16kWh can run a 2000W load for about 8 hours, or a 3000W load for around 5 hours. Inverter losses and usable capacity will reduce these figures slightly.
What is the benefit of dual MPPT?
Dual MPPT lets you connect two separate solar strings, each optimised independently. This is ideal when panels face different directions or part of the array is shaded, because a weaker string won’t reduce the output of the other.
What is the difference between the Cybotix 6kW 16kWh and 12kW 16kWh systems?
Both have a 16kWh built-in battery on a 48V platform. The 12kW model delivers double the output power and adds a second MPPT input, so it suits larger homes and businesses with heavier loads.
How should I connect solar panels to this system?
Connect your panels in two series strings, one per MPPT input, keeping each string’s voltage within 90-485V. Panel voltage rises in cold weather, so leave a safety margin below 485V. A qualified installer can design the best layout.
