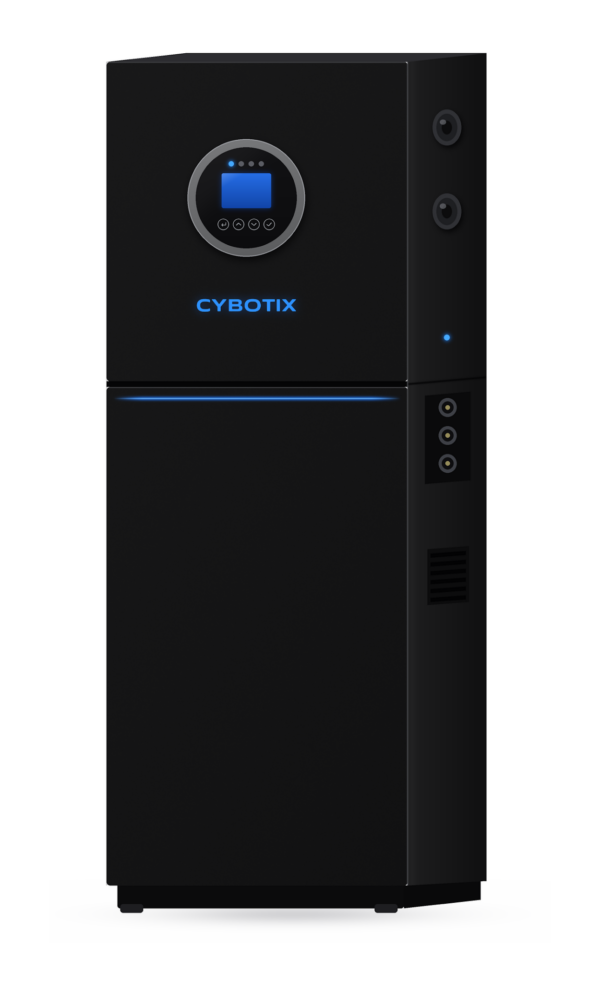

Cybotix 6kW All-in-One Solar Inverter with 10kWh Battery

The Cybotix 6kW all-in-one solar inverter combines a 6kW inverter, an MPPT charge controller, and a 10kWh battery in a single integrated cabinet. Built on a 48V battery platform, it gives larger homes and small businesses more power, more storage, and longer backup in one ready-to-install unit.

6kW Output for Larger Homes

Delivering 6kW at 208-240V AC, 50/60Hz, the system runs many appliances at the same time. It handles air conditioners, refrigerators, water pumps, washing machines, lighting, TVs, and computers. For motor-driven appliances, check the startup power so the combined load stays within 6kW.

10kWh of Built-In Storage

The integrated 10kWh battery stores surplus solar energy during the day and keeps your property running through the evening, overnight, and during extended power cuts. This 10kWh home battery system helps you use more of your own solar power and rely less on the grid.

48V Battery Platform for Better Efficiency

With a battery operating range of 40.5-54.5V DC, this 48V all-in-one energy storage system draws lower current than 24V designs at the same power. That improves efficiency and reduces heat, which suits higher-power applications.

High-Voltage 80-520V MPPT Input

The built-in MPPT controller tracks your solar array’s maximum power point throughout the day. Its 80-520V PV input range supports long series strings of high-wattage panels, so you get fewer cable runs, lower losses, and a cleaner installation.

Installation Note

The cabinet measures 440 × 245 × 1100 mm and weighs 107 kg. Move it with suitable lifting equipment and a team of installers, and have a qualified electrician connect it to your solar panels and electrical system.

Ideal For

• Larger homes running air conditioners and heavy appliances
• Long backup during load shedding and grid outages
• Offices, clinics, shops, and restaurants
• Properties that want inverter and storage in one compact cabinet

Technical Specifications

Frequently Asked Questions

How long will the 10kWh battery last?
It depends on your load. As a rough guide, 10kWh can run a 1000W load for about 10 hours, or a 2000W load for around 5 hours. Inverter losses and usable capacity will reduce these figures slightly.

Can this system run an air conditioner?
Yes. With 6kW of output, it can run an air conditioner along with other household loads, as long as the combined power, including startup surges, stays within 6kW.

What is the difference between the Cybotix 5kW and 6kW all-in-one systems?
The 6kW model has more output power, a larger 10kWh battery (vs 8kWh), a 48V battery platform instead of 24V, and a higher 80-520V MPPT input. That makes it the better choice for larger homes and heavier loads.

How should I connect solar panels to this system?
Wire your panels in series so the string voltage stays within the 80-520V MPPT range. Panel voltage rises in cold weather, so keep a safety margin below 520V. A qualified installer can design the right string layout.
